First Time Router Setup

CityFibre

1. Removing Existing Broadband Equipment

If you've moved to Zen from a previous provider, carefully disconnect any equipment from your old ISP to make way for your new Zen FRITZ!Box.

2. Identifying your ONT

The ONT (Optical Network Terminal) could look different depending on when you had your service installed.

If you need help finding your ONT, look for a small black/grey or white box, mounted to a wall within your property (usually on the ground floor), with 4 lights.

3. Connecting to a White ONT
  • Plug the Ethernet cable into "LAN" on your ONT.

FRITZ!Box Ethernet cable to LAN port | Zen internet

  • Connect the other end of the cable into "LAN1" on your router.

FRITZ!Box Ethernet cable to LAN 1 port
3. Connecting to a Grey ONT

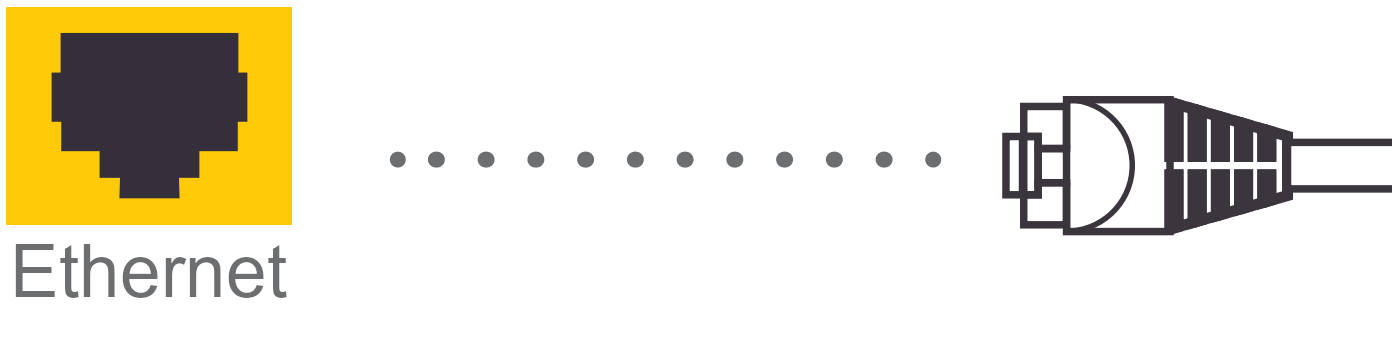

  • Plug the Ethernet cable into "Ethernet" on your ONT
Ethernet cable going into an Ethernet Port

  • Connect the other end of the cable into "LAN1" on your router

FRITZ!Box Ethernet cable to LAN 1 port
4. Connecting the Power Cable
  • Mains power connectors may come with a UK style head you have to clip onto them. Once done, connect this to a mains power socket.
  • Connect the remaining power cable to the back of your router.FRITZ!Box power cable to power socket

Now, the "Data" or "Ethernet" light will now begin to flash on your ONT. This indicates that your router is now talking to the Internet and setting up



CityFibre ONT light in working state | Zen internet

CityFibre Nokia ONT with correctly working indicator lights
5. Wait for 5 to 10 Minutes

Your router will need about 5-10 minutes to set itself up. It shouldn't need any help so go and make yourself a cup of tea whilst you wait.

When you come back, the Power/DSL light should be solid on the FRITZ!Box, meaning your router is ready to use!

FRITZ!Box Power/DSL on | Zen internet
